SDLG G9190 MOTOR GRADER PARTS CATALOG

SDLG G9190 MOTOR GRADER Oil bath and donaldson intake air module A0110-2801000944 1 28010005721 石棉垫 Gasket 1 2 4110001754 排气尾管 Pipe 1 3 28010009611 胶管 Hose 1 4 4110000769 T型抱箍φ146. 1（+2. 4-5. 6mm） Clamp 2 5 4110002118 油浴式空滤器KAB68-改进型 Air filter 1 6 29330023151 垫圈12 Washer 10 7 4011000090 螺栓GB5783-M12*35EpZn-8. 8 Bolt 4 8 28010009521 支架 Bracket 1 9 4015000162 垫圈GB97. 1-10EpZn-300HV Washer 20 10

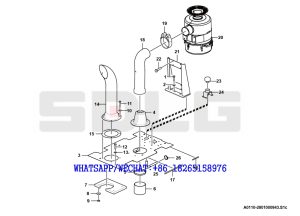

SDLG G9190 MOTOR GRADER Oil bath type air filter module A0110-2801000943 1 4011000091 螺栓GB5783-M12*40EpZn-8. 8 Bolt 6 2 4015000168 垫圈GB97. 1-12EpZn-300HV Washer 10 3 28010009461 上盖板焊接件 Cover plate 1 4 28010007801 空滤进气 Air inlet 1 5 4017000003 喉箍JB8870-d170 Clamp 1 6 28010007861 空滤进气胶管 Hose 1 7 28010007851 海绵1 Sponge 1 8 4015000198 垫圈GB96. 1-6EpZn-300HV Washer 4 9 4013000211 螺母GB889. 1-M6EpZn-8 Nut 4

SDLG G9190 MOTOR GRADER Engine suction line A0110-2801000908 1 28010005721 石棉垫 Gasket 1 2 4110001754 排气尾管 Pipe 1 3 4110000764 预滤器H002438 Primary filter 1 4 28010009121 连接胶管 Hose 1 5 4017000003 喉箍JB8870-d170 Clamp 2 6 4015000162 垫圈GB97. 1-10EpZn-300HV Washer 20 7 4011000081 螺栓GB5783-M10*20EpZn-8. 8 Bolt 16 8 29010020101 连接管 Intermediate pipe 1 9 4120001088 换气过滤器L1. 0807-31 Breather cap 1 10 28010011221 安装座 Seat 1 11

SDLG G9190 MOTOR GRADER Upper cover assy A0101-2801000571 1 4110001754 排气尾管 Pipe 1 2 4011000084 螺栓GB5783-M10*30EpZn-8. 8 Bolt 6 3 4015000197 垫圈GB96. 1-10EpZn-300HV Washer 6 4 28010005571 海绵 Sponge 1 5 4011000081 螺栓GB5783-M10*20EpZn-8. 8 Bolt 12 6 4015000162 垫圈GB97. 1-10EpZn-300HV Washer 12 7 28010006341 空滤进气胶管 Hose 1 8 4017000037 喉箍JB8870-d150 Clamp 1 9 28010011291 海绵 Sponge 1 10 28010011281 透气管 Hose 1 11 4017000011 喉箍JB8870-d32 Clamp

SDLG G9190 MOTOR GRADER Engine system A0100-2801000546 1 28010005661 空滤总成 Air cleaner 1 2 28010005711 上盖板总成 Cover plate 1 3 28010006001 水阀对丝 Plug 1 4 4120000067 暖风机水阀LG12-NFJSF Valve 2 5 4120000351 胶管JB8406-B16*4000 Hose assembly 2 6 4017000015 喉箍JB8870-d25 Clamp 4 7 26370001921 管夹 Clamp 1 8 28010006551 风扇垫块 Block 1 9 4110002109 风扇714/7-7/S4ZR/45/PAG/82. 6/-/A Fan 1 10 4015000072 垫圈GB97. 1-8EpZn-300HV Washer 4 11 4011000195 螺栓GB5783-M8*35EpZn-8. 8
