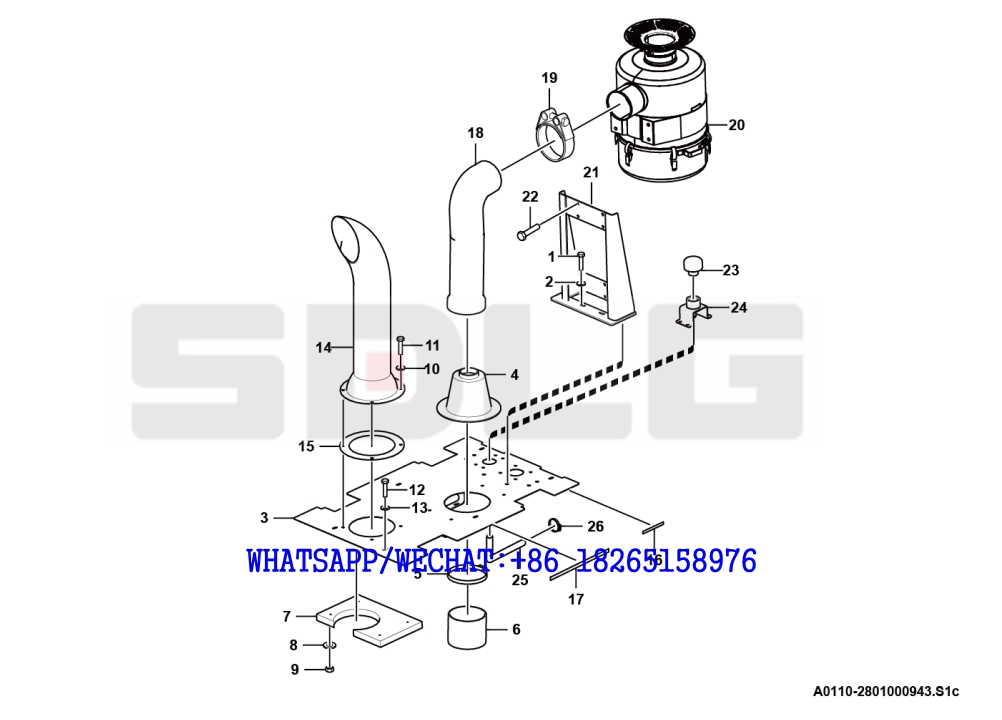

SDLG G9190 MOTOR GRADER Oil bath type air filter module A0110-2801000943
1 4011000091 螺栓GB5783-M12*40EpZn-8. 8 Bolt 6
2 4015000168 垫圈GB97. 1-12EpZn-300HV Washer 10
3 28010009461 上盖板焊接件 Cover plate 1
4 28010007801 空滤进气 Air inlet 1
5 4017000003 喉箍JB8870-d170 Clamp 1
6 28010007861 空滤进气胶管 Hose 1
7 28010007851 海绵1 Sponge 1
8 4015000198 垫圈GB96. 1-6EpZn-300HV Washer 4
9 4013000211 螺母GB889. 1-M6EpZn-8 Nut 4
10 4015000162 垫圈GB97. 1-10EpZn-300HV Washer 12
11 4011000081 螺栓GB5783-M10*20EpZn-8. 8 Bolt 12
12 4011000084 螺栓GB5783-M10*30EpZn-8. 8 Bolt 6
13 4015000197 垫圈GB96. 1-10EpZn-300HV Washer 6
14 4110001754 排气尾管 Pipe 1
15 28010005721 石棉垫 Gasket 1
16 4043001460 卡子胶条LGB320-U160 Sealing strip 8
17 4043001002 卡子胶条LGB320-U420 Sealing strip 2
18 28010009511 胶管 Hose 1
19 4110000769 T型抱箍φ146. 1（+2. 4-5. 6mm） Clamp 2
20 4110002118 油浴式空滤器KAB68-改进型 Air filter 1
21 28010009521 支架 Bracket 1
22 4011000090 螺栓GB5783-M12*35EpZn-8. 8 Bolt 4
23 4120001088 换气过滤器L1. 0807-31 Breather cap 1
24 28010011221 安装座 Seat 1
25 28010011281 透气管 Hose 1
26 4017000011 喉箍JB8870-d32 Clamp 2
